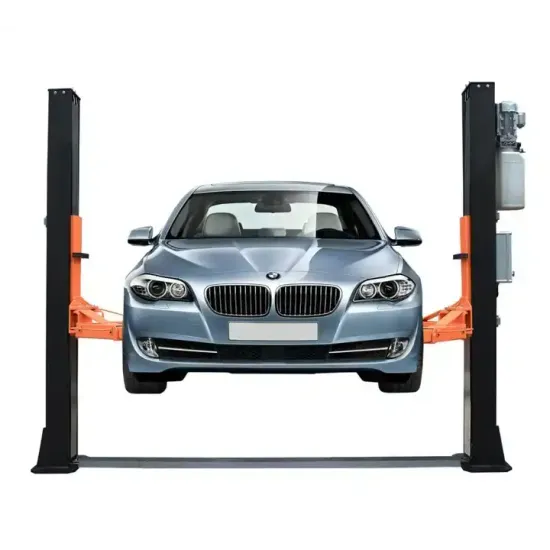

Two-post hydraulic car lift - Electric lock - 4 t
SF-B4000ES
- Load capacity: 4000 kg
- Maximum lifting height: 1900 mm
- Minimum lifting height: 98 mm
- Column height: 2830 mm
- Total width: 3380 mm
- Distance between columns: 2830 mm
- Raise time: 50 seconds
- Download time: 40 seconds
- Power supply: 220V (single-phase current) / 380V (three-phase current)
- Motor power: 2.2 Kw

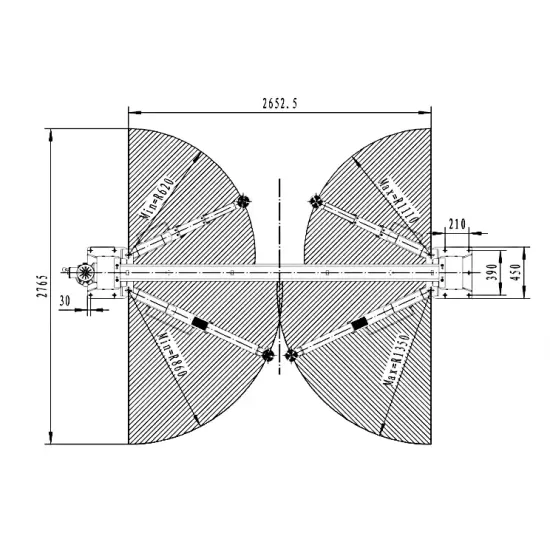

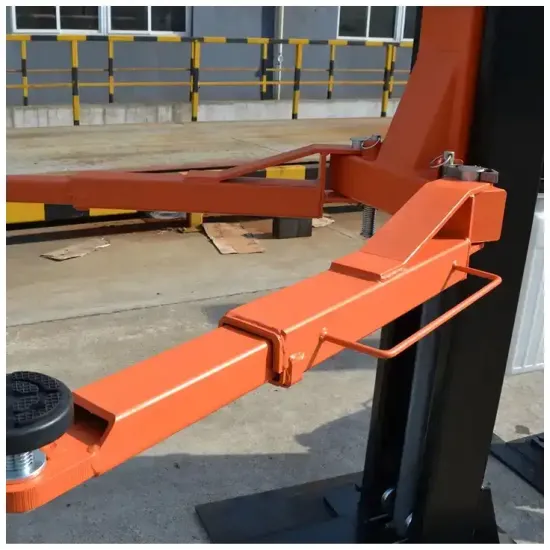

- Three-section telescopic front arms (620 – 1110 mm) and two-section telescopic rear arms (860 – 1350 mm), allowing easy positioning of cars of different dimensions
- The pawls of the jack are equipped with rubber pads that protect the car threshold during operation

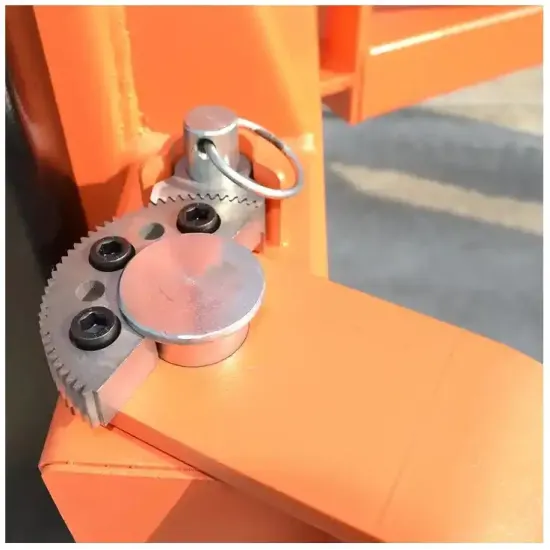

- Mechanism for locking the arms (paws)
- System for securing each column with automatic locking when lifting

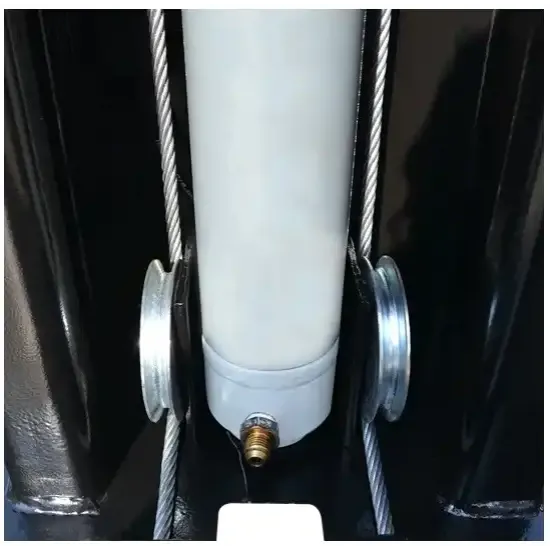

- Two hydraulic cylinders (one in each column) driving the carts by chain with the arms (paws)
- Electric release of the safety locking system when dismounting by pressing a button

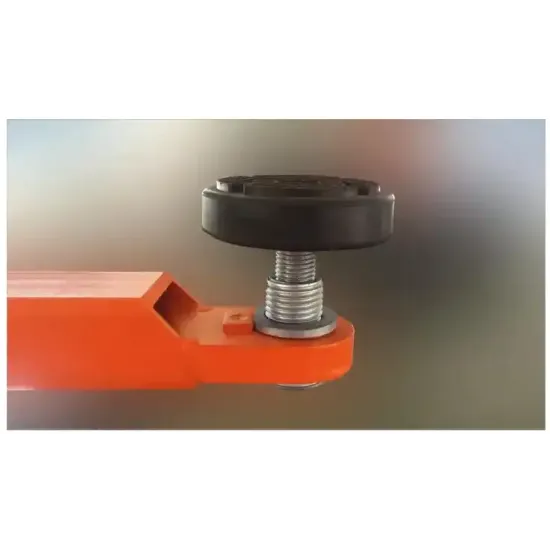

- Single-stage adjustable lifting paw pads
- Synchronizing cables allowing fine adjustment of the height of the carts
- Safety valve to prevent overloading of the hydraulic system
- Safety valve blocking the cylinders in the event of a broken hydraulic hose

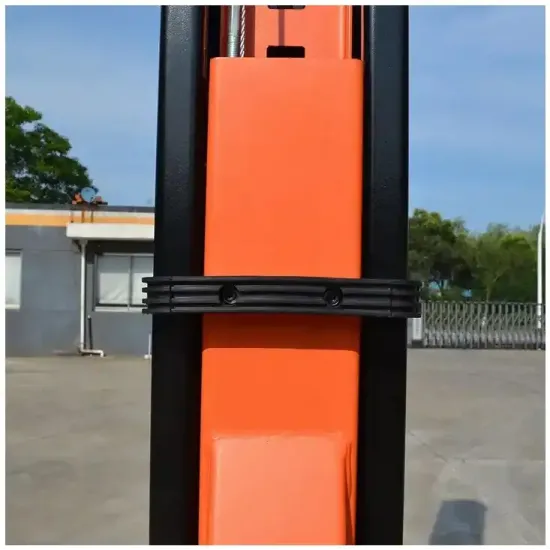

- Rubber guard protecting the vehicle door when opening
- Fasteners (anchor bolts) and hydraulic oil are included in the price of the lift
- Necessary foundation for installation: Leveled foundation of reinforced concrete (C20/25) with a thickness of 300 mm
- We offer spare parts, consumables and accessories for hoists
- One year general warranty (subject to certain of our installation requirements)
- Two year construction warranty
- We offer warranty and out-of-warranty service
- The price is for loading the hoist from the company's warehouse and independent installation and does not include transport
- If the customer wishes, we offer installation and transport
- For additional information and conditions regarding delivery and installation, please contact the InstrumentiPro team (0885060096)
