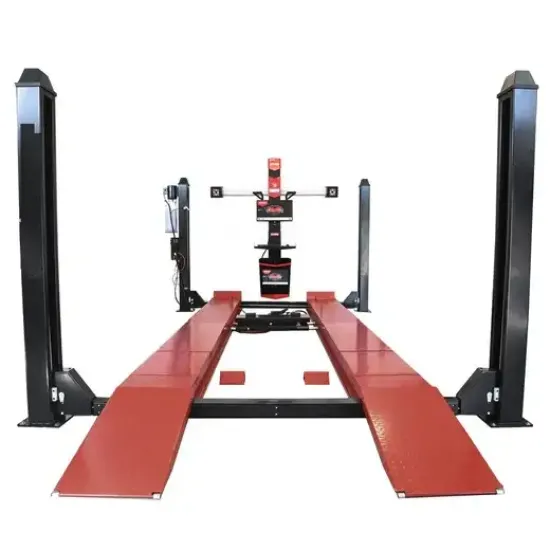

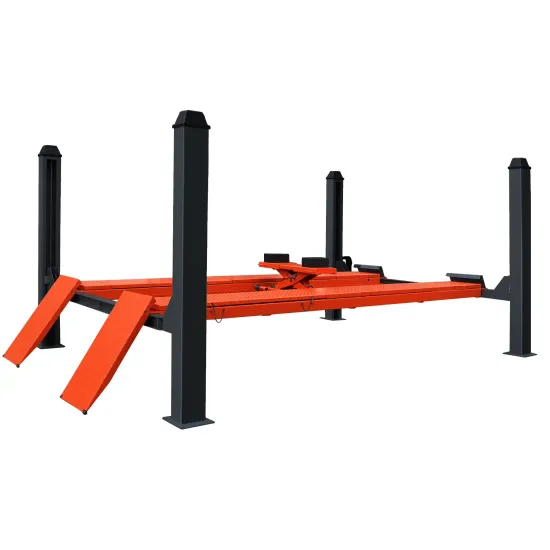

Four-post hydraulic car lift - Manual lock - 5 t
4SF-5000B
- Lifting capacity: 5000 kg

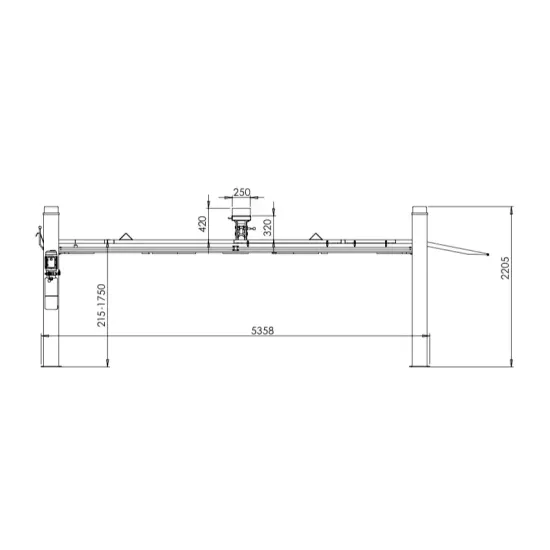

- Maximum lifting height: 1750 mm
- Minimum lifting height: 215 mm

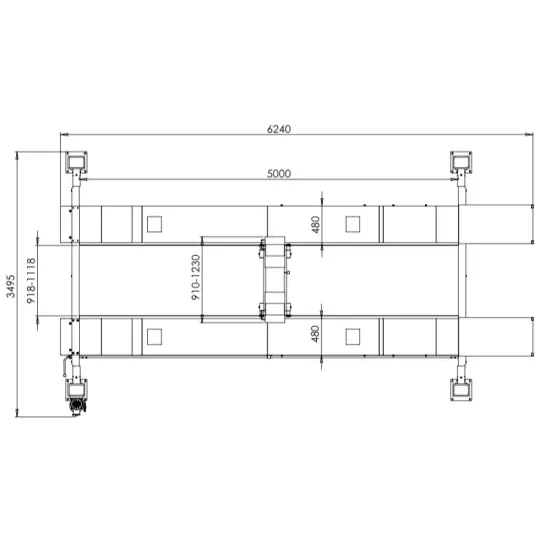

- Aisle length: 5000 mm
- Aisle width: 480 mm
- Aisle spacing: 918 - 1118 mm (distance adjustable)
- Lifting time: 70 seconds
- Lowering time: 40 seconds

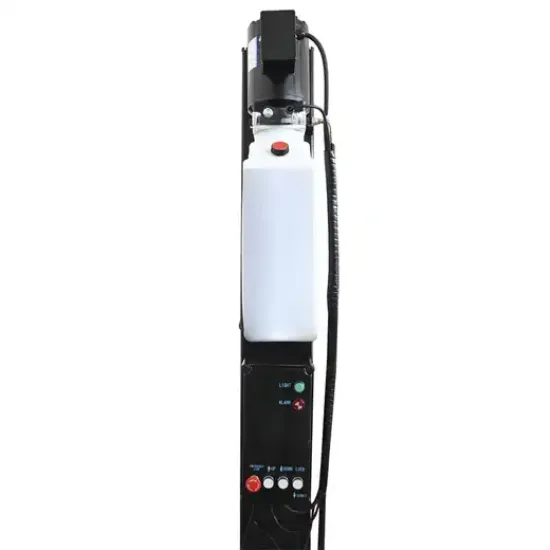

- Power supply: 380V (three-phase current)
- 24V control circuit
- Limit switch in maximum upper position
- Motor power: 2.2 Kw
- Rear extension plate set

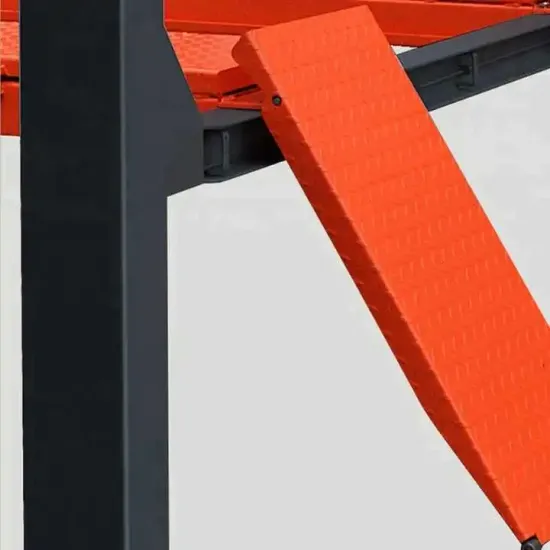

- Access ramps have anti-slip coating

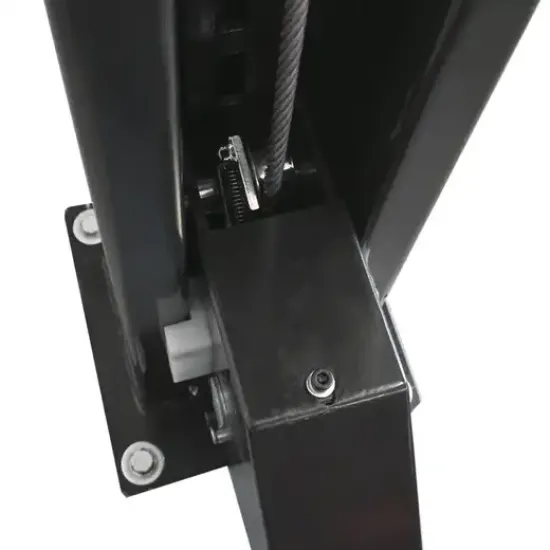

- Securing system on each column with automatic lift lock
- Manual release of securing system via common control lever on one column

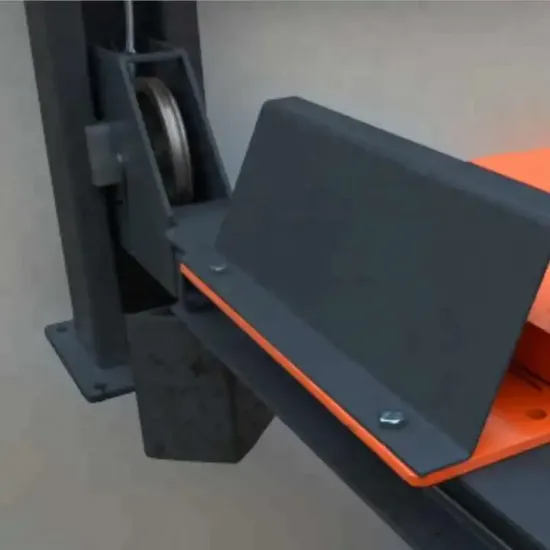

- Synchronising cables allowing fine adjustment of trolley height
- Safety valve to prevent overloading of the hydraulic system
- Safety valve blocking the cylinders in case of a broken hydraulic hose

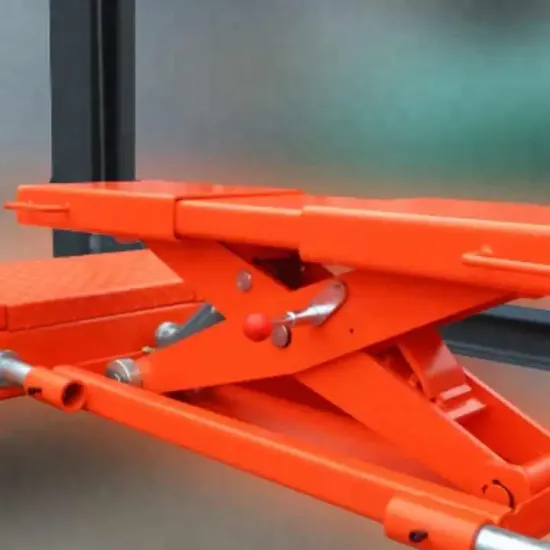

- Option at extra cost: Additional removable scissor jack with 2000 kg lifting capacity We offer hire purchase - Contact us for more information
- Fasteners (anchor bolts) and hydraulic oil are included in the price of the lift
- Necessary foundation for installation: Leveled foundation of reinforced concrete (C20/25) with a thickness of 300 mm
- We offer spare parts, consumables and accessories for hoists
- One year general warranty (subject to certain of our installation requirements)
- Two year construction warranty
- We offer warranty and out-of-warranty service
- The price is for loading the hoist from the company's warehouse and independent installation and does not include transport
- If the customer wishes, we offer installation and transport
- For additional information and conditions regarding delivery and installation, please contact the InstrumentiPro team (0885060096)
