Engine timing tool Set - BMW M60, M62
CK1272
Application Models:
BMW : E34 530i, E32
730i, E38 730i, E34 540i, E32 740i, E38 740i, E31 840, E39 535i, E38
735i, E39 535i, E38 735, E39 540i, E38 740i, E31 840ci, E39 540i, E38
740i, E53 X5 4.4i, E53 X5 4.6i

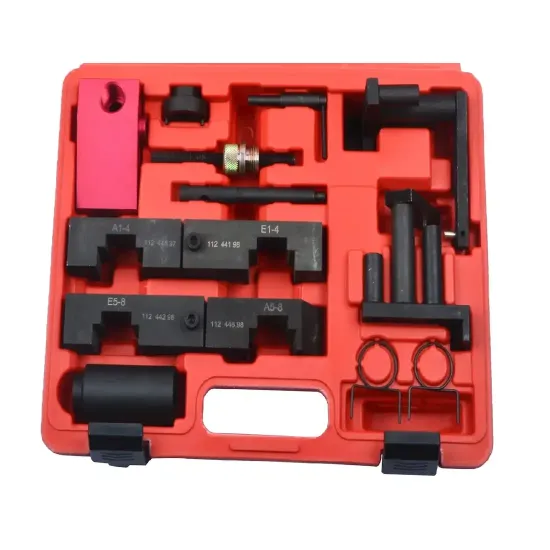

.The kit includes the following:

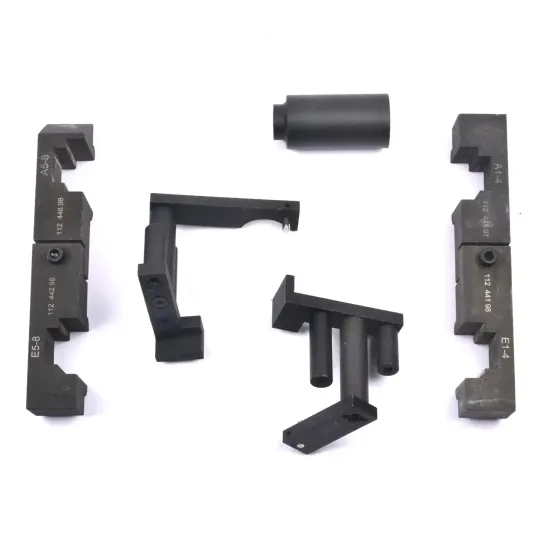

.Camshaft Alignment Fixtures: Two camshaft alignment jigs to fix the camshafts in the TDC orientation during assembly.
.Rigid Chain Tensioner: To tension the primary chain.
.M60 Crankshaft Pin: Top dead center pin to align the flywheel at the TDC position - for M60 Engines.
.M62 Crankshaft Pin: Top dead center pin to align the flywheel at the TDC position - for M62 Engines.
.Secondary
Chain Tensioner Locking Springs: Utilized to lock the timing chain
tensioners in the retracted position (2 pcs included).
.M62 Chain
Tensioning Bracket Trestle: Used to provide a mounting point for the
rigid chain-tensioning tool while the front timing case is removed from
the engine for servicing the timing chain, servicing VANOS components,
or adjusting cam timing.
.M62 VANOS Timing Tool: Two fixtures to lock the sensor wheels in place during the timing of VANOS-equipped M62 engines.
.M62
VANOS Turning / Adjustment Socket: Special socket is utilized to turn
the VANOS cam phase during assembly and cam-timing of M62 engines.
.VANOS
Electromagnetic Valve Socket: Special deep, the thin-wall 32-mm socket
that is required to remove the electromagnetic valve on 6 and 8-cylinder
engines equipped with VANOS variable valve timing.
Camshaft Alignment Vanos Timing Tool Set for BMW M60 M62
For fixing the camshaft chain tensioner.
Applicable: M60, M62 (VANOS).
Master tool set contains a comprehensive set of tools to perform camshaft timing on M60 engines and camshaft +
VANOS timing on M62 Engines.
(# B112440) M60 M62 Camshaft Alignment / Timing Tools:
This tool kit contains all the necessary, engine-specific tools to time the camshafts in BMW M60 and M62 engines.
Includes: Two camshaft alignment jigs to fix the camshafts in the proper orientation during assembly.
( # 112300)Top dead center pin:
To align the flywheel at the TDC position.
( # 114230)Rigid chain tensioner:
Use to tension primary chain. Short format for late model V8 also for M3.
(# 116450)M62 VANOS Camshaft Timing Tool:
Two fixtures to lock the sensor wheels in place during timing of VANOS equipped M62 engines.
For: M62VANOS (1999-2002)
(# 116420)VANOS Electromagnetic Valve Socket:
Special deep, thin-wall 32-mm socket that is required to remove the electro-magnetic valve on 6 and 8 cylinder engines equipped with VANOS variable valve timing.
For: M54, M62VANOS
(*R)M62 Chain Tensioning Bracket Trestle:
Used to provide a mounting point for the rigid chain-tensioning tool while the front timing case is removed from the engine for servicing the timing-chain, servicing of VANOS components or adjusting cam timing.
