Double Vanos Assembly Timing Engine Tool 5pc Set For BMW M52TU/M54/M56 (CK1143)

Double Vanos Assembly Timing Engine Tool 5pc Set For BMW M52TU/M54/M56

CK1143

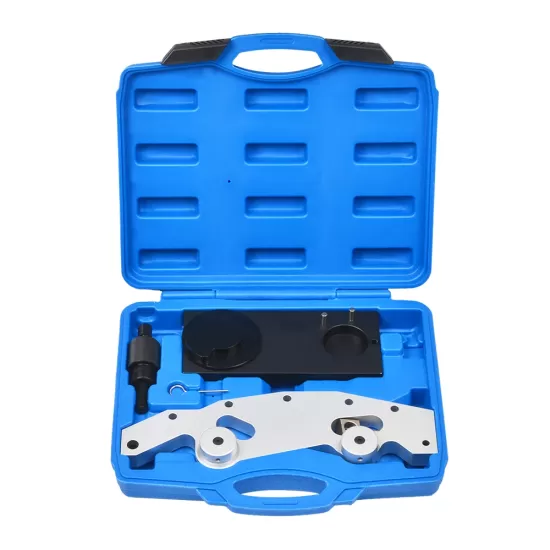

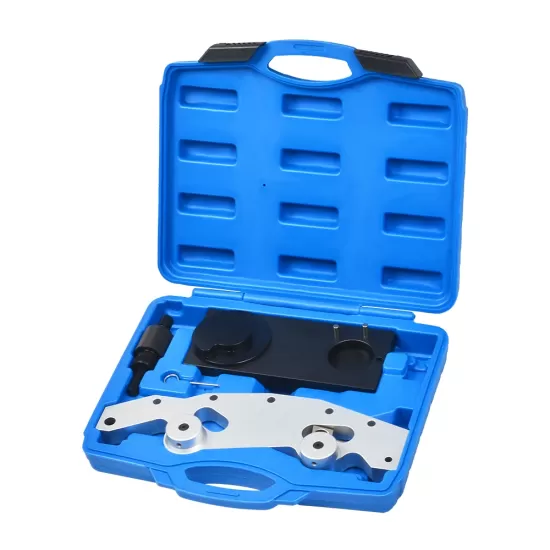

    Master tool set contains a comprehensive set of tools to perform camshaft timing on BMW M52TU, M54, M56 engines. The kit includes the following:

    BMW Double VANOS Camshaft Alignment Tool M52TU M54 M56 6-cylinder engines utilized from 1998 onwards, Include:

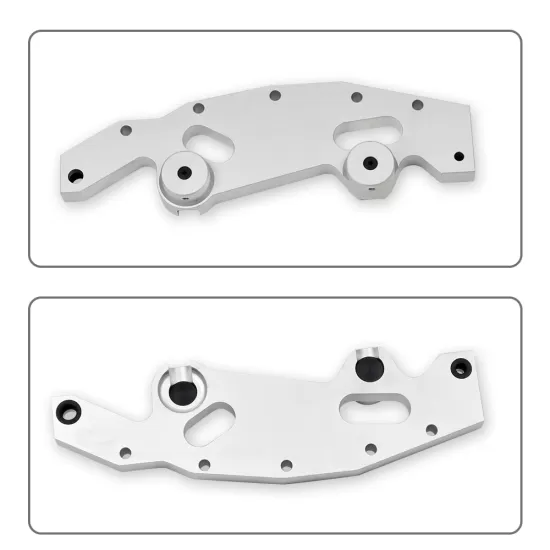

    1) (ref.#116150) Alignment Jig: Adjusting plate for setting valve timing on engine with double Vanos.

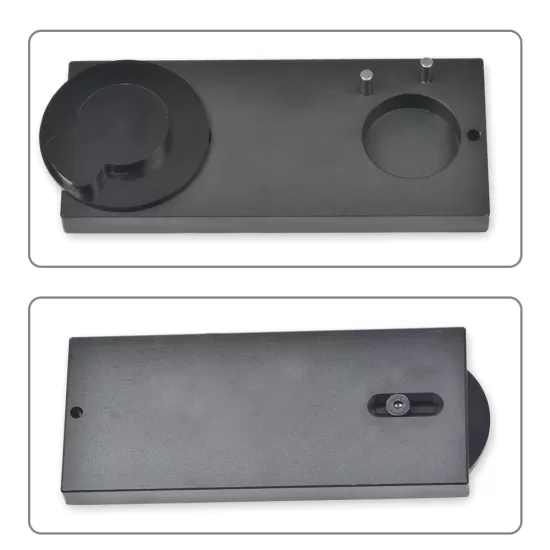

    2) (ref.#116180) Sprocket Assembly Jig: Use for preassembling secondary chain sprockets with chain on camshafts.

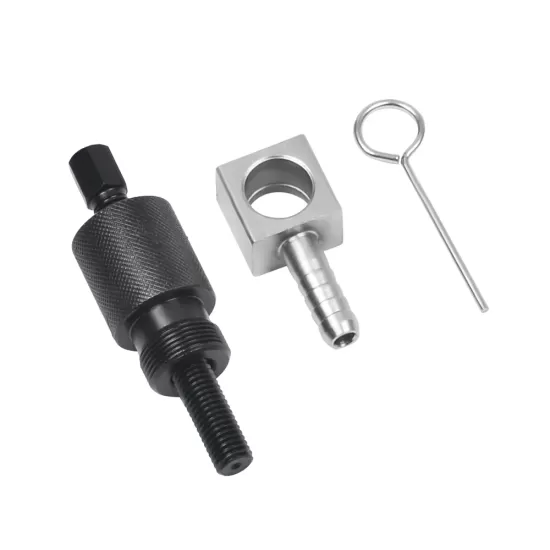

    3) (ref.#114220) Rigid Chain Tensioner: Use to tension primary chain.

    4) (ref.#113292) Chain Tensioner Lock Pin: Locks chain tensioner during timing.

    5) (ref.#113450) VANOS Compressed Air Connection: Use to pressurize the single and double Vanos unit when checking or removing and replacing.

      Application Detail:

M52TUB25
* 1997-2001 E46 323i/323Ci/323ti (M52T)
* 1998-2001 E39 523i (M52TU)
* 1998-2001 E36/7 Z3 (M52TU)

M52TUB28
* 1997-2001 E46 328i/328Ci (M52TU)
* 1997-2001 E36/7 Z3 2.8 (M52B28/Z3)
* 1998-2001 E39 528i (M52TU)
* 1998-2001 E38 728i (M52TU)

M54B22
* 2001-2003 E46 320i/320Ci
* 2001-2003 E39 520i
* 2001-2002 E36 Z3 2.2i
* 2003-2005 E85 Z4 2.2i
* 2003-2005 E60/E61 520i

M54B25
* 2001-2002 E36/7 Z3 2.5i
* 2001-2005 E46 325i/325xi
* 2001-2006 E46 325Ci
* 2001-2004 E46 325ti
* 2001-2004 E39 525i
* 2003-2004 E60/E61 525i/525xi
* 2004-2006 E83 X3 2.5i
* 2004-2006 E85 Z4 2.5i

M54B30
* 2001-2005 E46 330i/330xi
* 2001-2006 E46 330Ci
* 2001-2003 E39 530i
* 2001-2002 E36 Z3 3.0i
* 2003-2005 BMW E60 530i
* 2003-2006 E85 Z4 3.0i
* 2004-2006 E83 X3 3.0i
* 2001-2006 E53 X5 3.0i
